    4 DBi 1.3M Length AIS Marine Antenna Easy Installation With High Efficiency

    Ask Lasest Price
    Brand Name : DIXIN
    Model Number : DX-A-162-01/02
    Certification : ROHS,CE
    Price : Contact Us
    Payment Terms : T/T
    Supply Ability : 5000pcs/Month
    Delivery Time : Contact Us
    • Product Details
    • Company Profile

    4 DBi 1.3M Length AIS Marine Antenna Easy Installation With High Efficiency

    4 dBi 1.3M AND 1.8M Lenth AIS Marine Antenna with Frequency 162±2 Mhz


    Product Overviews:

    The AIS Antenna is specifically designed for maritime use,

    operating within the VHF frequency range of 156 to 163 MHz.


    It features a 4 dB gain, ensuring strong signal reception and transmission,

    while maintaining a 50Ω impedance and a V.S.W.R of ≤1.5 for efficient performance.

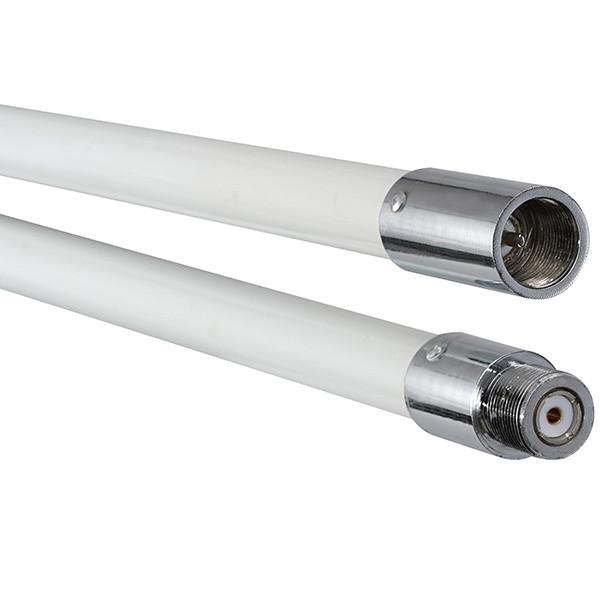

    Available in 1.3m and 1.8m lengths, this marine antenna is constructed from durable fiberglass,

    providing reliable, omni-directional radiation coverage.


    The S16 connector allows for easy integration into existing marine systems,

    making it an ideal choice for enhancing vessel communication and safety at sea.


    Features and Benefits:


    • 4 dBi Signal Strength: Delivers powerful signal transmission with up to 100W of power, ensuring reliable communication.
    • Frequency Range: Optimized for 162±2MHz, providing clear and consistent maritime communication.
    • Available Lengths: Choose between 1.3m and 1.8m for the ideal fit on your vessel.
    • Omni-Directional Radiation Pattern: Ensures comprehensive 360-degree coverage for enhanced signal reception.
    • Durable Fiberglass Radome: Rust-proof construction with a fiberglass ferrule, designed to endure harsh marine environments.
    • Easy Installation: Includes low-loss cable and a solder-free, screw-on S16 connector for quick and simple setup.
    • Enhanced Performance Elements: Features thick brass and copper components for superior range, clarity, and efficiency.
    • UV Stable Exterior Finish: White polyurethane coating protects against sun damage, extending the antenna's lifespan.
    • Climate-Resistant Design: Built to withstand the toughest weather conditions, ensuring long-lasting, trouble-free service.


    Specifications:


    Electrical SpecFrequency Range (MHz)
    162±2MHz
    Gain (dBi)4
    Input Impedance (Ω)50
    V.S.W.R1.5
    PolarizationVertical
    Maxlmum input power (W)100
    Wind loading rating60m/s
    Mechanical SpecConnectorSL16
    Size(mm)φ32*1300
    Radiating Element MaterialCopper Cu
    Radome materialFiberglass
    InstallationPole and support pipe



    Dimension Drawing:




    Applications:





    Quality Control:

    ISO9001, 14001, 45001



    About Us:

    Established in 2003 and officially registered in 2018,
    Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

    We specialize in the research and development, production, sales, technical support,
    and system engineering construction of marine electronic products.
    Our dedication to innovation is reflected in our portfolio of over 20 national patents,
    including new utility patents, appearance patents, and software copyrights.

    Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
    AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
