ASA material weather resistence Wind Speed And Direction Measurement Anenometer
Product Overviews:
The DX-WDS2 ultrasonic anemometer is engineered for precision and durability,
featuring a lightweight and robust design with no moving parts.
This eliminates the need for routine maintenance and calibration on site.
The device is capable of simultaneously outputting wind speed and direction data and is compatible with PCs,
data loggers, or other systems that support its communication protocol.
Additionally, it can be equipped with optional modules,
such as a barometric pressure sensor for air pressure measurement or a 3D module to assess vertical and horizontal vibrations,
without altering its design.
This advanced ultrasonic anemometer provides an effective solution to the limitations of mechanical anemometers,
ensuring reliable, round-the-clock operation.
Its increasing adoption across industries underscores its role as a powerful replacement for traditional mechanical models.
Key Features:
Specifications:
Wind speed | Range | 0 - 60m/s |
| Accuracy | ±2% | |
| Resolution | 0.01m/s | |
| Unit | m/s,km/h,knots,mph,ft/min (selectable) | |
Wing direction | Measure Range | 0-359° |
| intersection angle with geographic north | 0-359° | |
| Accuracy | ±3° | |
| Resolution | 1° | |
| Digital output | Interface | RS232/RS485/SDI-12 |
| Baud rate | 9600(default) 1200-19200(configurable) | |
| Frequency | Standard: 1Hz (1 output per second) Customized:4Hz(4 outputs per second) | |
| protocol | ModBus-RTU/NMEA 0183/SDI-12 | |
Analogue output (current output is optional) | Two ways 4-20mA Max.load 500Ω | |
| Protection grade | IP65 | |
| Operating Temperature | -40℃ - +70℃ | |
| Operating Humidity | 0 - 100% | |
| Power supply | DC 5－30V | |
| Power Consumption | 5mA@12V(Heater off) 125mA@12V(Heater on) | |
| Size/Weight | Φ144×165mm / 0.68kg | |
| Body material | ASA | |

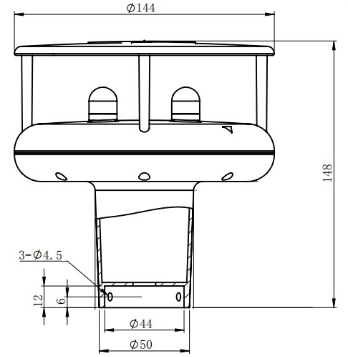

Dimension Drawing:
Applications:

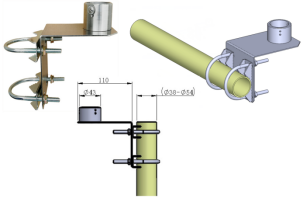

Normally,DX-WDS2 is installed on a vertical pole horizontally
For indoor use, sensor can be installed anywhere to measure wind speed and direction of corresponding plane.
