7NM AIS Fiberglass Marine Navigation LED Lantern For Beacon Light Tower Bridge
Product Overviews:
Our Fixed Self-Contained Solar Marine Lantern with AIS is designed for use on fixed structures,
offering a dependable range of up to 7 NM.
This all-in-one, weather-protected solution includes an LED light source, AIS transponder, and GPS module.
Powered by four solar panels and a large battery, it guarantees high energy efficiency for extended operation
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X455mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤11KGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥2.5° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| Frequency error | ±0.5kHz | |
| Transmission power | ≤12.5W | |
| Average power consumption | ≤0.05W | |
| Message format | No. 21 and NO.6,message periods are adjustable | |
| Operating type | Type three (SOTDMA, autonomous working mode) | |
| AIS antenna | Included, high gain omnidirectional antenna |

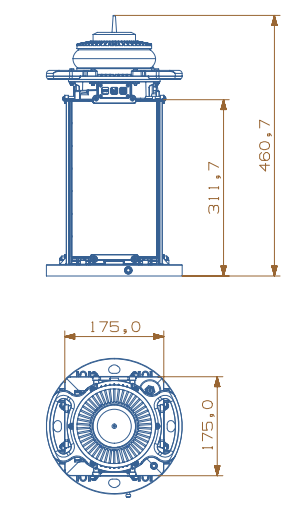

Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan,
China.
We specialize in the research and development, production, sales,
technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over
20 national patents,
including new utility patents, appearance patents, and software
copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and
self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
|
|
